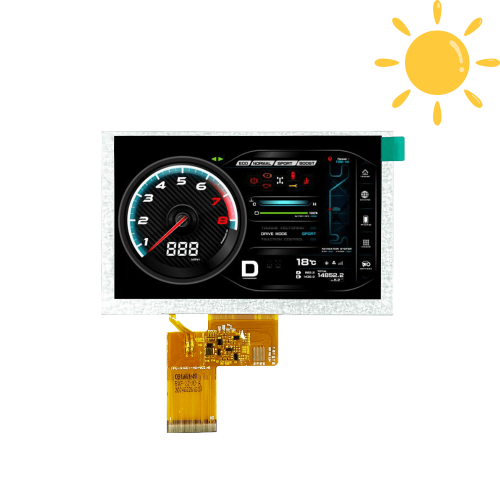

Hochhelle LCD-Displays, sonnenlichtlesbare LCD-Bildschirme


Die MAXEN High Brightness LCD Displays-Serie (sonnenlichtlesbare LCD-Bildschirme) ist mit einem Helligkeitsbereich von 500 Nits bis 2000 Nits für bestimmte Modelle ausgestattet. MAXEN-LCD-Displays mit hoher Helligkeit umfassen 3,5”, 4,3”, 5”, 7”, 8”, 9”, 10,1”, 10,4”, 12,1”, 12,3”, 15”, 15,6”, 17”, 19”, 21,5” , 24”, 32” und 21,5” usw. mit einer Auflösung von 320 x 240, 480 x 272, 800 x 480, 1024 x 600, 1024 x 768, 1280 x 800, 1920 x 1080 usw. m²) oder größer, wodurch das Display im Freien oder bei hellen Bedingungen viel besser lesbar ist. Bitte verwenden Sie den unten stehenden Produktfilter, um ein LCD-Display mit hoher Helligkeit zu finden, das für Ihre Anwendung geeignet ist.
ANFRAGE SENDEN
Produkt
Size Resolution Image Model No. Type PIN Interface Brightness Technology Viewing Angle(T/B/L/R) O.T L.T Outline Dimension Active Area
3.5" 320x240 1000 Nits 3,5-Zoll-TFT-LCD-Modul MX-H35HR541K-IT15 Landscape 54pin 24Bit- RGB+SPI 1000 nits IPS 80/80/80/80 -30~85 °C 50K Hr. 76.90*63.90*3.20 70.08*52.56
4.3" 480x272 1000 Nits 4,3-Zoll-TFT-LCD MX-B43NR-40TWG1K Landscape 40pin RGB 1000 nits TN 60/70/75/75 -20~70 °C 50K Hr. 105.50*67.20*3.00 95.04*53.86
4.3" 480x272 1000 Nits 4,3-Zoll-LCD-Bildschirm MX-B43NR40-IG271K Landscape 40pin RGB 1000 nits IPS 80/80/80/80 -20~70 °C 50K Hr. 105.50*67.20*3.00 95.04*53.86
4.3" 800x480 1000 Nits 4,3-Zoll-LCD-Display MX-B43HR-40IS141K Landscape 40pin RGB 1000 nits IPS 80/80/80/80 -20~70 °C 50K Hr. 105.42*67.07*2.90 95.04*53.86
5.0" 800x480 1000 Nits 5-Zoll-IPS-LCD-Panel MX-B50HR40-TIS09 Landscape 40pin RGB 500 nits IPS 80/80/80/80 -20~70 °C 50K Hr. 120.70*75.90*3.05 108.00*64.80
7.0" 800x480 1000 Nits 7-Zoll-LCD-Display HCT-X70T50-30L5729W Landscape 50pin RGB 1000 nits TN 50/70/70/70 -20~70 °C 50K Hr. 164.90*100.00*5.70 154.08*85.92
7.0" 1024x600 1000 Nits 7-Zoll-TFT-LCD MX-B70HR50-IS471K Landscape 50pin RGB 1000 nits IPS 85/85/85/85 -20~70 °C 50K Hr. 165.00*100.00*5.70 154.21*85.92
7.0" 1024x600 1000 Nits 7-Zoll-TFT-Display MX-H70HL40-IS311K Landscape 40pin LVDS 1000 nits IPS 85/85/85/85 20~85°C 50K Hr. 165.00*100.00*3.50 154.21*85.92
7.0" 1200x1920 2000 Nits 7-Zoll-LCD-Panel MX-B70FM40-IHL49H Portrait 40pin MIPI 2000 nits IPS 80/80/80/80 -20~60 °C 30K Hr. 105.46*162.82*2.40 94.50*151.20
8.0" 800x600 1000 Nits 8-Zoll-LCD-Display MX-A80NR501K-TWY11 Landscape 50pin RGB 1000 nits TN 50/70/70/70 -20~70 °C 50K Hr. 183.00*141.00*5.80 162.00*121.50
8.0" 800x1280 1000 Nits 8-Zoll-LCD-Bildschirm MX-080FM31BFH-N11 Portrait 31pin MIPI 1000 nits IPS 85/85/85/85 -10-50 °C 20K Hr. 114.60*184.10*2.50 107.64*172.22
10.1" 1024x600 10,1-Zoll-LCD-Display mit 1000 Nits MX-B101HR50-IS411K-DB Landscape 50pin RGB 1000 nits IPS 85/85/85/85 -20~70 °C 50K Hr. 235.00*143.00*5.20 222.72*125.28
10.1" 1280x800 10,1-Zoll-LCD-Bildschirm mit 1000 Nits MX-B101FL401K-IM33 Landscape 40pin LVDS 1000 nits IPS 80/80/80/80 -20~70 °C 50K Hr. 228.30*150.05*5.00 216.96*135.60
10.4" 1024x768 10,4-Zoll-LCD-Display mit 1000 Nits HCT-H104L30-32H02I Landscape 30pin LVDS 1000 nits IPS 85/85/85/85 -20~70 °C 50K Hr. 225.80*174.30*6.70 211.20*158.48
10.4" 1024x768 10,4-Zoll-LCD-Panel mit 1000 Nits MX-C104HL30-ID071K Landscape 30pin LVDS 1000 nits IPS 80/80/80/80 -20~70 °C 50K Hr. 227.00*175.80*9.20 210.432*157.824
12.1" 1280x800 1000 Nits 12,1 Zoll LCD-Modul MX-B121FL20-IS81K Landscape 20pin LVDS 1000 nits IPS 85/85/85/85 -20~70 °C 50K Hr. 277.70*180.60*8.70 261.12*163.20
19.0" 1280x1024 1000 Nits 19-Zoll-LCD-Display G190ETN01.4-G1KD Landscape 30pin LVDS 1000 nits TN 80/80/85/85 -30~85 ℃ 50K Hr. 396.00*324.00*12.88 376.32*301.06
32" 1920x1080 1000 Nits 32 Zoll LCD-Anzeigemodul MX320CD05-G1KD Landscape 51pin LVDS 1000 nits IPS 89/89/89/89 -20~80 °C 50K Hr. 730.40*425.00*18.50 698.40*392.85
